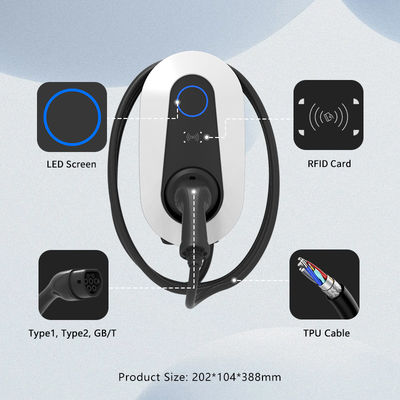

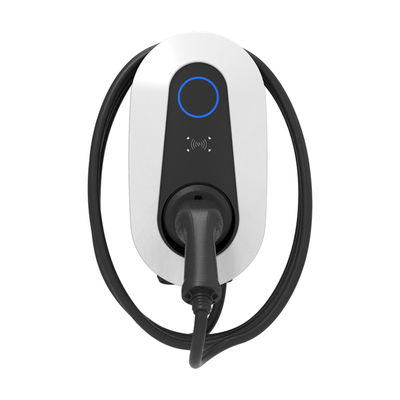

7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G

7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G
7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G

Gambar besar :  7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: KIWI
Nomor model: S1-AC220V-7KW
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $270-320
Kontak

7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G

Deskripsi
Standar Antarmuka: Tipe-1/Tipe-2/GB/T Daya output: 7 kW
Tegangan input: 200 - 220v Frekuensi input: 50Hz+-3% atau 60 Hz+-3%
Konektivitas: WIFI/Bluetooth/4G Antarmuka pengguna: LCD atau LED 3,8 inci
Protokol komunikasi: Hak Milik dan OCPP 1.6J/2.0.1 Pembaca RFID: ISO/IEC 14443 A/B MIFARE RFID Reader
Peringkat Perlindungan: IP55 Suhu operasi: -35°C hingga +50°C
Ukuran: Ukuran 202*104*388mm Berat: 6kg (tanpa kolom)
Tegangan output: AC 220V ± 20% Arus keluaran: Setiap fase 0-32a
Panjang kabel busi: 5M (Dapat Disesuaikan)
Menyoroti:

7kW Type1 EV charger with WiFi

,

Type2 GB/T AC charger with Bluetooth

,

4G EV charger for home use

Type1 Type2 GB/T 7kw AC Charging Point Charging Station EV Charger
7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 0 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 1 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 2 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 3 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 4 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 5 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 6 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 7 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 8 7kW Type1 Type2 GB/T AC EV Charger with WiFi Bluetooth 4G 9
Product Specifications
Item Specification

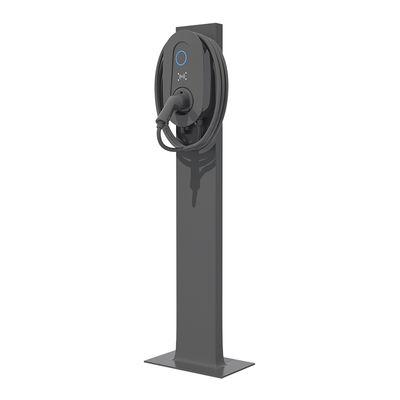

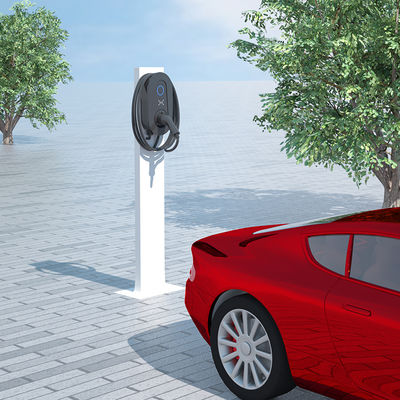

Installation Method Wall-mounted, column (optional)
Rated Power 7KW, 11KW, 22KW
Charging mode APP(QRCode), Plug & Charge, RFID
Size (H * W * D) 202*104*388mm
Weight 6kg (Without column)
Input
Input voltage 230VAC/400 VAC/400 VAC
Input Current Each phase 0~32A
Leakage Protection Overcurrent, overvoltage, undervoltage, ground fault, integrated surge protection, RDC (typeA + DC6mA), over-temperature protection
Output
Output voltage AC 220V±20%
Output current Each phase 0-32A
Connection method
Number of plug 1
Charging connection method 1. Connection method C (plug version)
2. Connection method B (socket version)
Plug wire length 5m (customizable)
Plug standard Type-1/Type-2/GB/T
Human-computer interaction
LED LED Status light
Other
Protection level IP55
Operating temperature -35°C to +50°C
Relative humidity <95%, No condensation
Lifespan ≥10000 times
Frequently Asked Questions
Q: How is your electric vehicle charging station after-sale service?
  • We will build a whatsapp/skype/wechat service group with technical engineers and company leader if needed
  • We provide 24/7 online service
  • Will change the part for free during warranty if non-human damage
Q: How is your payment method?
Normally 30%-50% deposit and balance paid before shipment. Special requirements please contact us.
Q: How long is your normal delivery time?
  • Stock items: immediate shipment
  • Custom AC chargers (less than 100pcs): 7-15 days
  • Custom DC chargers (less than 100pcs): 15-25 days
Q: Can I use my own card or app at your electric car charging stations?
Our system requires our RFID card/app. We provide 3 free RFID cards with each charger.
Q: Will your electric car charger charging slower in winter?
The charger may need slightly longer warm-up time but output power remains unaffected.
Q: Can you provide a video how to install the electric vehicle charger?
Yes, we provide installation guide videos and online support for any questions.
Q: How can I become your exclusive agency?
Available in markets without existing agents. Exclusive agency requires meeting annual sales targets.
